Little Giant Wheel Selection Guide

How To Choose A Wheel:
• Load Capacity
• Push Start Force
• Rolling/Floor Conditions
• Durability/Duty Requirements

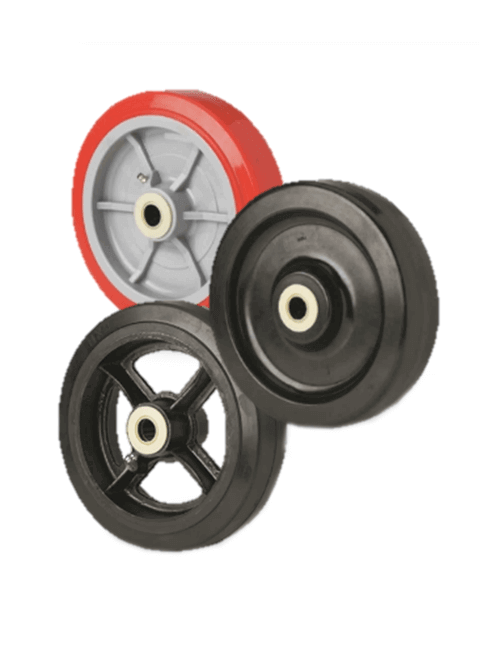

Typical Factory Floor	Rough/Uneven/Outdoor
• Polyurethane	• Pneumatic
• Phenolic	• Solid Rubber
• Mold-On Rubber	• Flat-Free

Wheel Applications

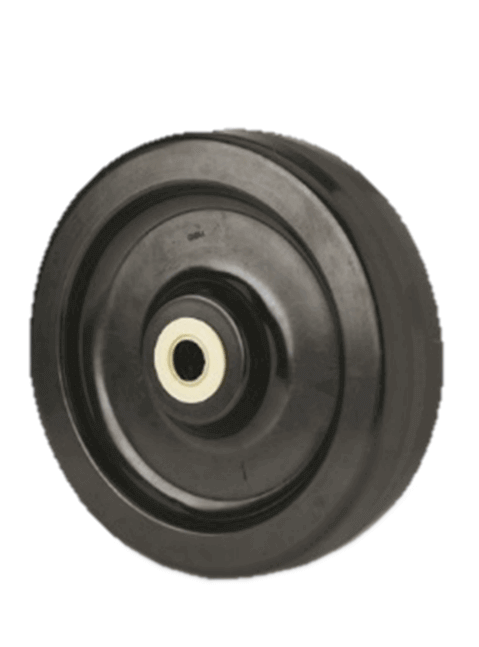

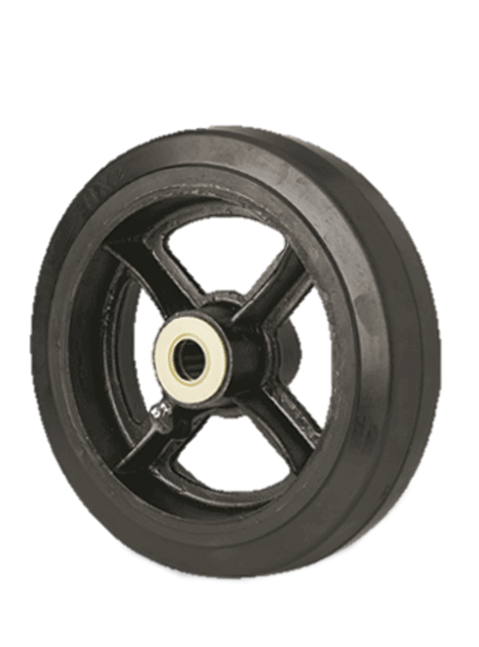

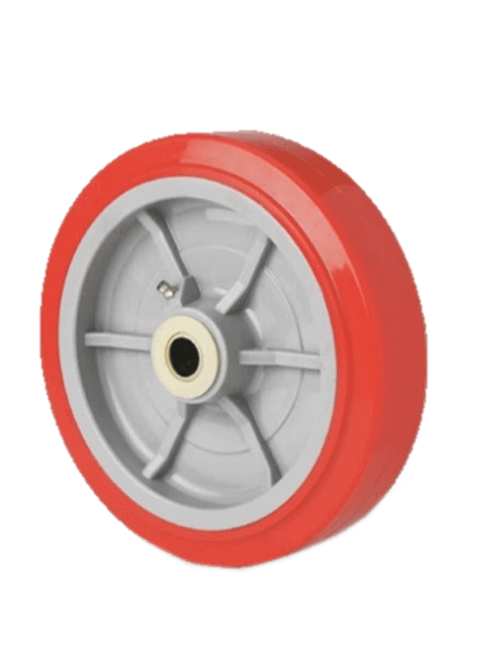

Polyurethane	Mold-On Rubber	Phenolic
Load Capacity Range per Caster Set (4):	Load Capacity Range per Caster Set (4):	Load Capacity Range per Caster Set (4):
1200-4000 lbs.	2000-2400 lbs.	3600-5000 lbs.
• Non-Marking Tread	• Cushion Tread	• Chemical Resistant
• Chemical Resistant	• Absorbs shock/vibration	• High Temperature
• Quiet Operation	• Floor Protection	• Non-marking
• Integrated Grease Zerk	• Quiet Operation
Applications:	Applications:	Applications:
Industrial, Warehouse, Institutional	Industrial & Warehouse	Least rolling resistance, but does not absorb vibrations

Cushion Wheel Applications

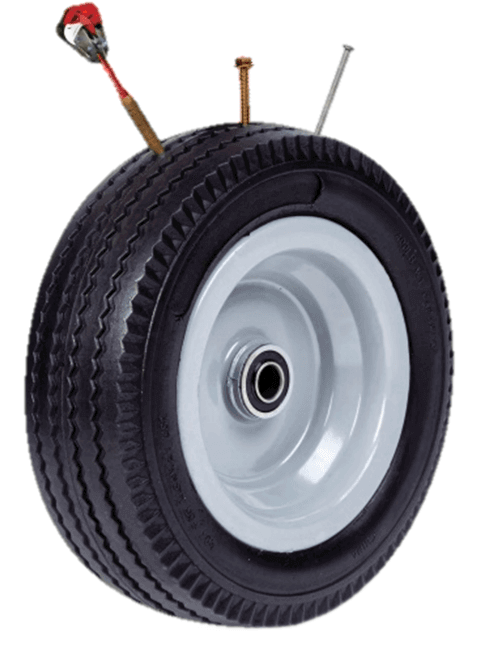

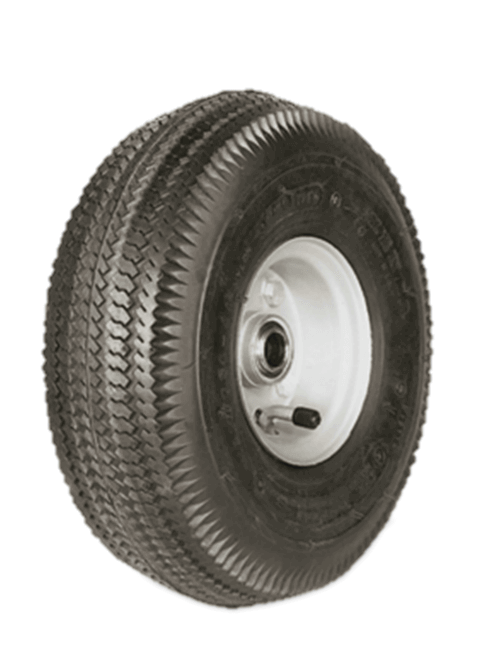

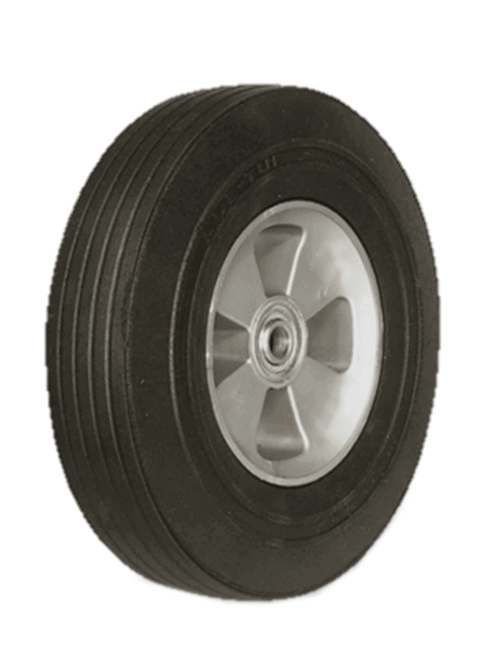

Pneumatic	Solid Rubber	Flat Free
Load Capacity Range per Caster Set (4):	Load Capacity Range per Caster Set (4):	Load Capacity Range per Caster Set (4):
1200-4000 lbs.	1200-1600 lbs.	1600 lbs.
Air Filled rubber tire on a metal hub is able to easily roll over uneven surfaces and bumps.	Cushioned rubber tire that is more stable and easier to roll under heavy loads than pneumatic.	Wide Rubber tread disperses the load better over irregular or softer surfaces. Less tread compression than pneumatic or solid rubber tires. Only available with off-set hub.
Requires air pressure.	Rugged and maintenance free.

Swivel vs. Rigid Caster

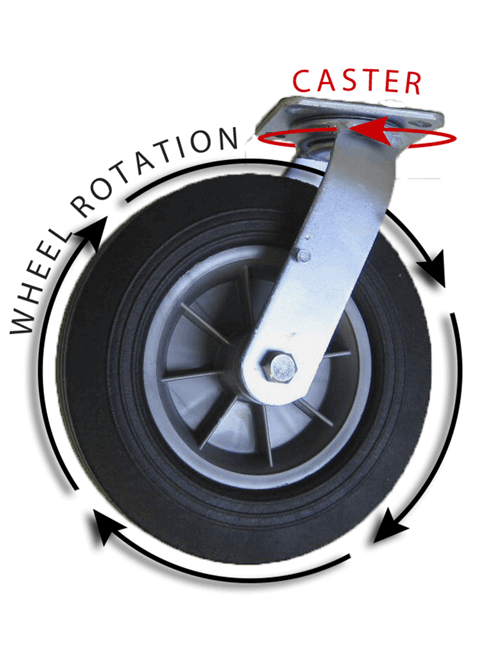

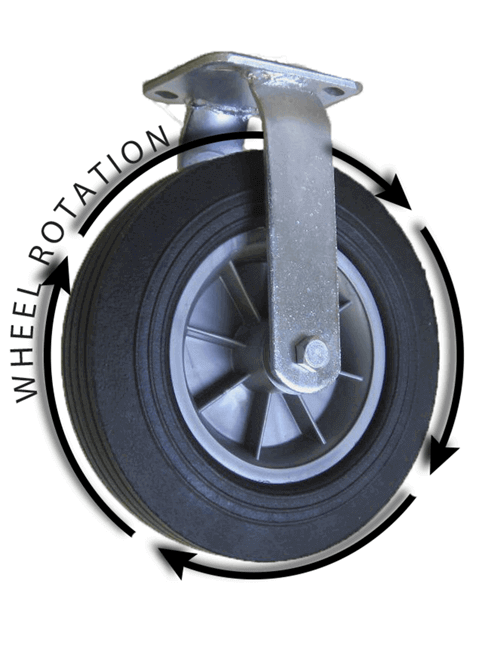

Swivel Caster	Rigid Caster
