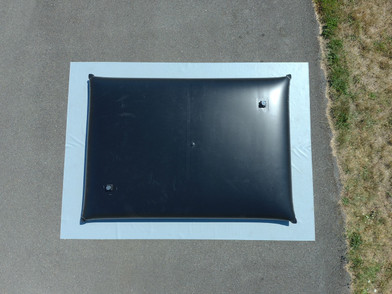

Non Potable Water Pillow Tanks w/Ground Mat
Collapsible, flexible storage tanks provide the ideal solution for temporary or long term storage of non potable water, black water, fuel, oil and most aqueous solutions.
• Fast and easy to install with standard size capacities available from 100 to 150,000 gallons.
• Manufactured to exacting quality standards our bladders will handle a broad range of land based applications.
• Bladder Tank built to meet Mil Specs. or Civilian
• Overlap Welds
• Connection sizes from .25" - 6"
• Custom bladder and water liner solutions
• Strict Quality Control
• Many high standards to improve durability
- 2 x 2" Male Camlocks
- Pressure Relief
- Ground Mats: For use on rough terrain areas. Ground Mats are waterproof and available for under the tank for protection from rocks and sharp objects. Extra matting extends life of the tank and is made wider and longer than the tank to fully cushion it.
- Tanks 200 Gallons and under have a 3/4" discharge
- Tanks over 200 Gallons up to 25,000 Gallons have 2 x 2" Male Camlocks (one on top and one side mounted) and garden hose fitting
- Tanks 25,000 Gallons and up have 2 x 4" Male Camlocks (one on top and one side mounted) and garden hose fitting
- Other size connections, valves, parts and other associated options
Pallet, Crate, Export Certified Crates , UPS & Common Carriers. Larger tanks packed with forklift slings to ease deployment
Please Note:The empty dimensions tank sizes can vary a little depending on application, fabric used and/or military spec.
We provide tanks up to 210,000 Gallons
• Below is for IPI Sizes up to 25,000 gallon
• It all starts with quality control
• Bladder Tanks Meet commercial specifications (Mil Spec Available)
• 5 year MFG warranty on seams and workmanship, exclusive of freight and abuse
• Non-Potable Pillow Tank Material: XR-5
• Fittings: 2” Poly Male camlocks/, Quick Disconnects
• Other fittings available
• All Bolt on connections are used
• Lay Out Handles
• Pressure Relief/vent included
• Testing on all pillow bladders prior to shipment
• Sizes up to 210,000 gallons are available. Manufacture may vary
• Custom Pillow tanks and connections are available
Pillow and Bladder Tanks Can Be Used for Much More Than Holding Water
• Clean Out or Tank Repair Storage. Pillow and Bladder Tanks are ideal for portable compact storage of liquids while other tanks are being cleaned or repaired. Once the permanent tanks are ready simply pump the liquids out of the Pillow Tank. Once empty and prepared for storage the Bladder Tank can be folded for compact storage without taking up workspace.
• Rainwater Capture. Portable and storable pillow tanks work great for rainwater capture. You can easily deploy the tanks when expecting rain. Use the pillow tanks to store the water until used and simply fold up the tank when rain is not expected or if you need to capture rainwater in a new area.
• Irrigation. Pillow Bladder Tanks provide simple and efficient storage options for irrigation used. Simple to configure for storage of irrigation water and easy to fold, store, or move to the next irrigation location.
• Weight and Load Testing. Pillow and Bladder Tanks can be used to load test weight bearing areas or equipment. Simply fill with the desired volume and weight of liquid needed for the load test. Once complete the Pillow Tank can be emptied and stored until the next load bearing test is conducted. This allows for access to high volume and weights without taking up storage or floor space when not in use.
• Drought Preparation. Store Water for later use during periods of drought. Reclaimed water, rain water, irrigation water, and more can be stored in flexible tanks for future use.
• Disaster Relief and Humanitarian Missions. Access to clean reliable drinking water is essential following hurricanes, earthquakes, floods, or other natural disasters. Flexible Bladder tanks can be quickly and easily deployed in remote hard to reach areas and areas with damaged infrastructure to provide drinking water for those in need.
• Man Camps. Provide access to clean water for the individuals in man camps using flexible pillow tanks. Non Potable Water can also be stored for wash down, plumbing, or other uses.
• Construction Water. Quick Easy Access to Water needed during construction. Flexible tanks can be filled, used, and emptied as needed. Pillow tanks are portable enough to move with the job as needed throughout the construction site.
• Remote Fire Preparedness. Transport tanks to remote areas and fill with water for fire response. Flexible tanks can be filled and left to be ready for rapid fire response.
